Our Products
Plunger And Pressure Pumps
Offering you a complete choice of products which include Polyhydron Plunger Pump, 1r3a-50. Leading Manufacturer of Plunger And Pressure Pumps from Ahmedabad.

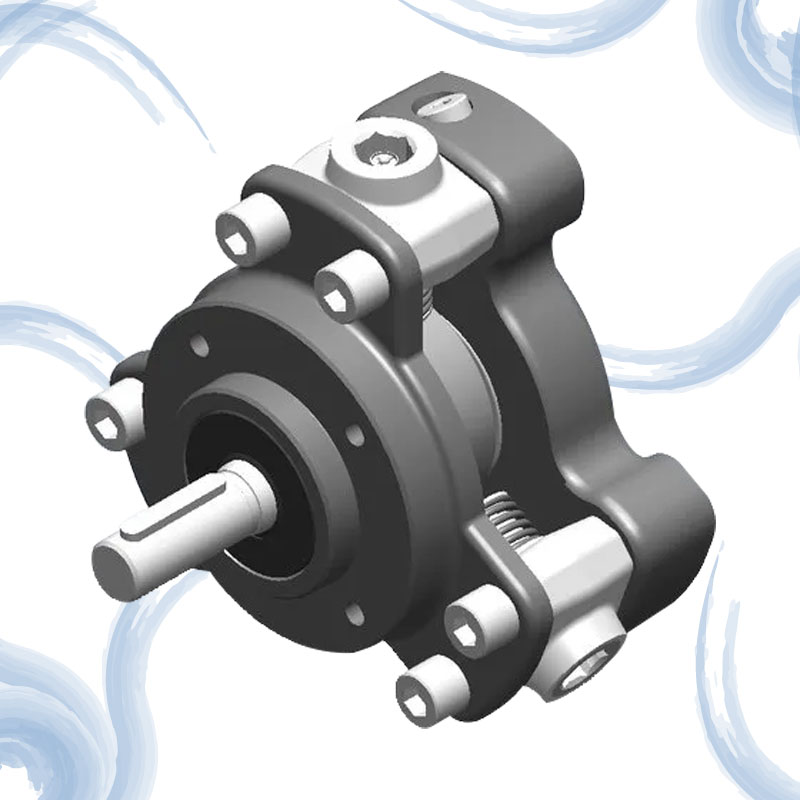

Polyhydron Plunger Pump, 1r3a-50
Designation:1R is a basic radial piston pump group.
Design:Radial piston, valve controlled.
No. of elements:3.
Mounting: Face mounting.
Interface:Factory standard.
Direction of rotation:No restriction on directions of rotation
Flow and Pressure:Refer Table no.1
Hydraulic medium:Mineral oil.
Temperature range:-20°C to + 80°C.
Viscosity range :10 cSt to 100 cSt.
Fluid cleanliness required:ISO 4406 20/18/15 or better
Mass:5.5 Kg.
| Model Name/Number | 1r3a-50< |
| Max Flow Rate | 3675 |
| Brand | Om Engineering |
| Usage/Application | Industrial |
